手搓JSVM第 12 篇：完整最小 JSVM 实现与源码设计复盘

本文目录

1. 本文目标
2. 最小 JSVM 总览
3. 支持语法范围
4. 核心代码骨架
5. Runtime 最小实现
6. 执行函数
7. 示例 Artifact
8. run(source) 的位置
9. 测试用例
10. 源码设计复盘
11. 安全与设计提醒
12. Mermaid 总复盘
13. 本文小结

手搓JSVM第 12 篇：完整最小 JSVM 实现与源码设计复盘 --------------------------------

1. 本文目标

来到最后一篇，我们把前面逐步实现的零件重新组装成一台完整的最小 JSVM。

这台教学版最小 JSVM 至少支持：

数字常量
字符串常量
加减乘除
变量声明
变量读取
表达式执行
简单函数调用
return
简单 if

示例：

<span>function</span> <span>add</span>(<span>a, b</span>) {
  <span>return</span> a + b;
}

<span>let</span> x = <span>add</span>(<span>1</span>, <span>2</span>);
x;

输出：

<span>3</span>

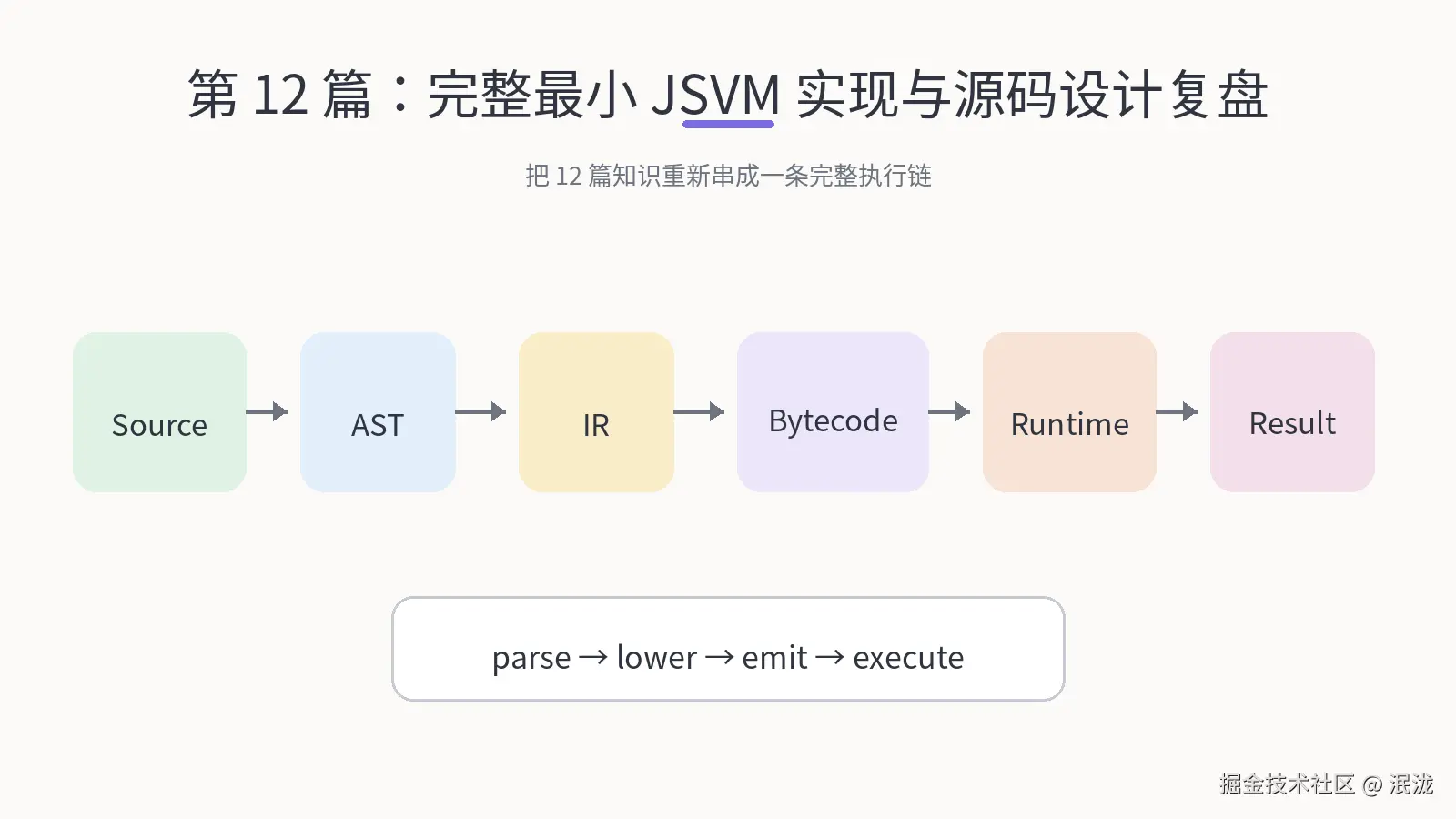

2. 最小 JSVM 总览

flowchart LR
    A[&#34;Source&#34;] --> B[&#34;Parser/AST&#34;]
    B --> C[&#34;Compiler AST->IR&#34;]
    C --> D[&#34;Emitter IR->Bytecode&#34;]
    D --> E[&#34;Runtime&#34;]
    E --> F[&#34;Result&#34;]

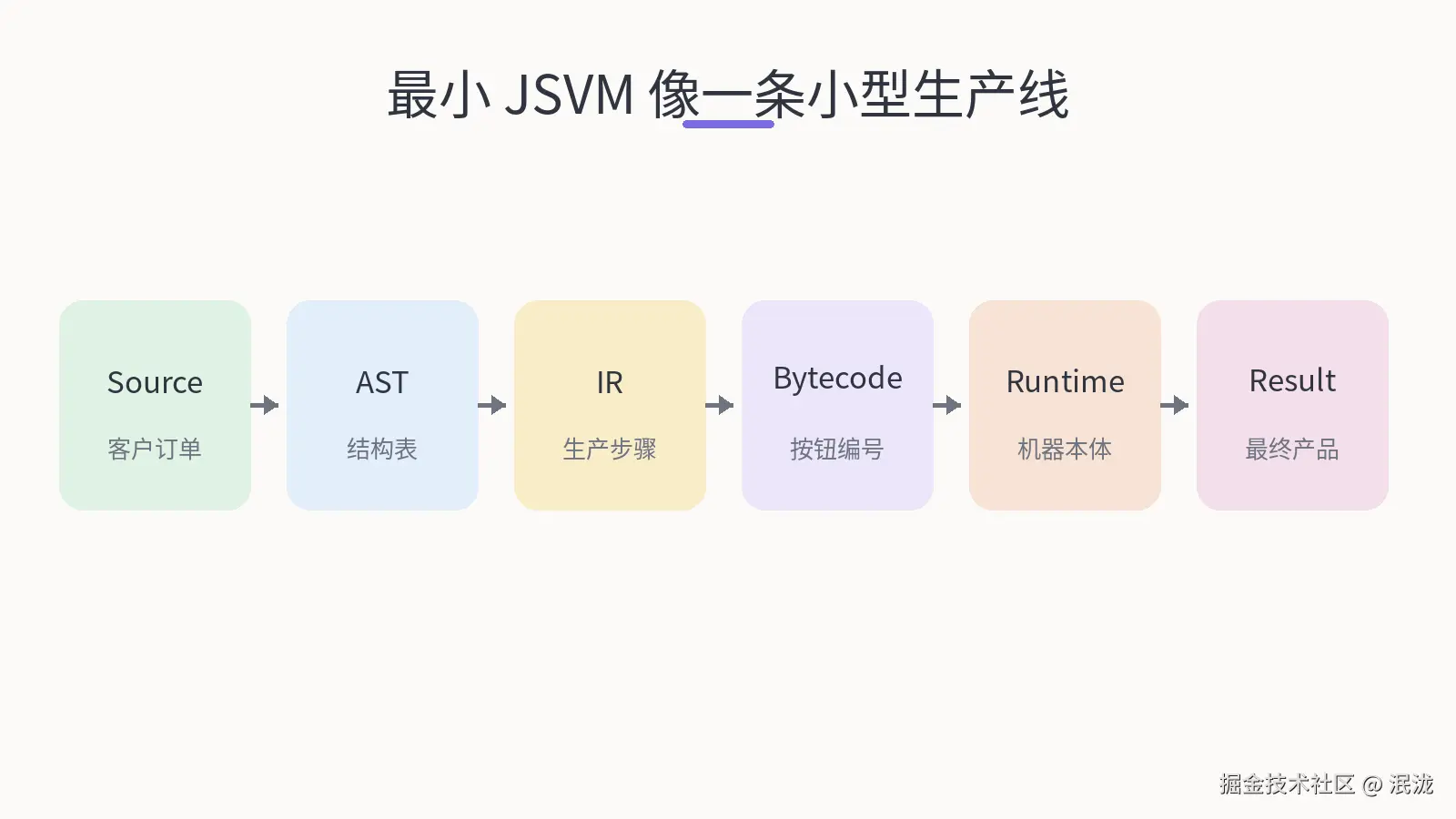

形象化比喻：一条小型生产线

Source：客户订单；
AST：订单结构表；
IR：生产步骤；
Bytecode：机器按钮编号；
Runtime：机器本体；
Result：最终产品。

3. 支持语法范围

把范围收窄后，教学版最小实现支持：

能力	示例
数字	`1`
字符串	`'a'`
四则运算	`1 + 2 * 3`
变量声明	`let a = 1`
变量读取	`a`
函数声明	`function add(a,b){...}`
函数调用	`add(1,2)`
return	`return a + b`
if	`if (x) { x = 2 }`

不支持或作为扩展：

完整 JS parser；
完整块级作用域；
闭包完整语义；
对象和 class 完整语义；
async/generator；
module bundling。

4. 核心代码骨架

<span>const</span> <span>OPCODES</span> = {
  <span>LOAD_CONST</span>: <span>1</span>,
  <span>LOAD_SLOT</span>: <span>2</span>,
  <span>INIT_SLOT</span>: <span>3</span>,
  <span>STORE_SLOT</span>: <span>4</span>,
  <span>BINARY</span>: <span>5</span>,
  <span>JUMP</span>: <span>6</span>,
  <span>JUMP_IF_FALSE</span>: <span>7</span>,
  <span>MAKE_FUNCTION</span>: <span>8</span>,
  <span>CALL</span>: <span>9</span>,
  <span>RETURN</span>: <span>10</span>,
};

<span>const</span> <span>BINARY_OPS</span> = {
  <span>'+'</span>: <span>1</span>,
  <span>'-'</span>: <span>2</span>,
  <span>'*'</span>: <span>3</span>,
  <span>'/'</span>: <span>4</span>,
};

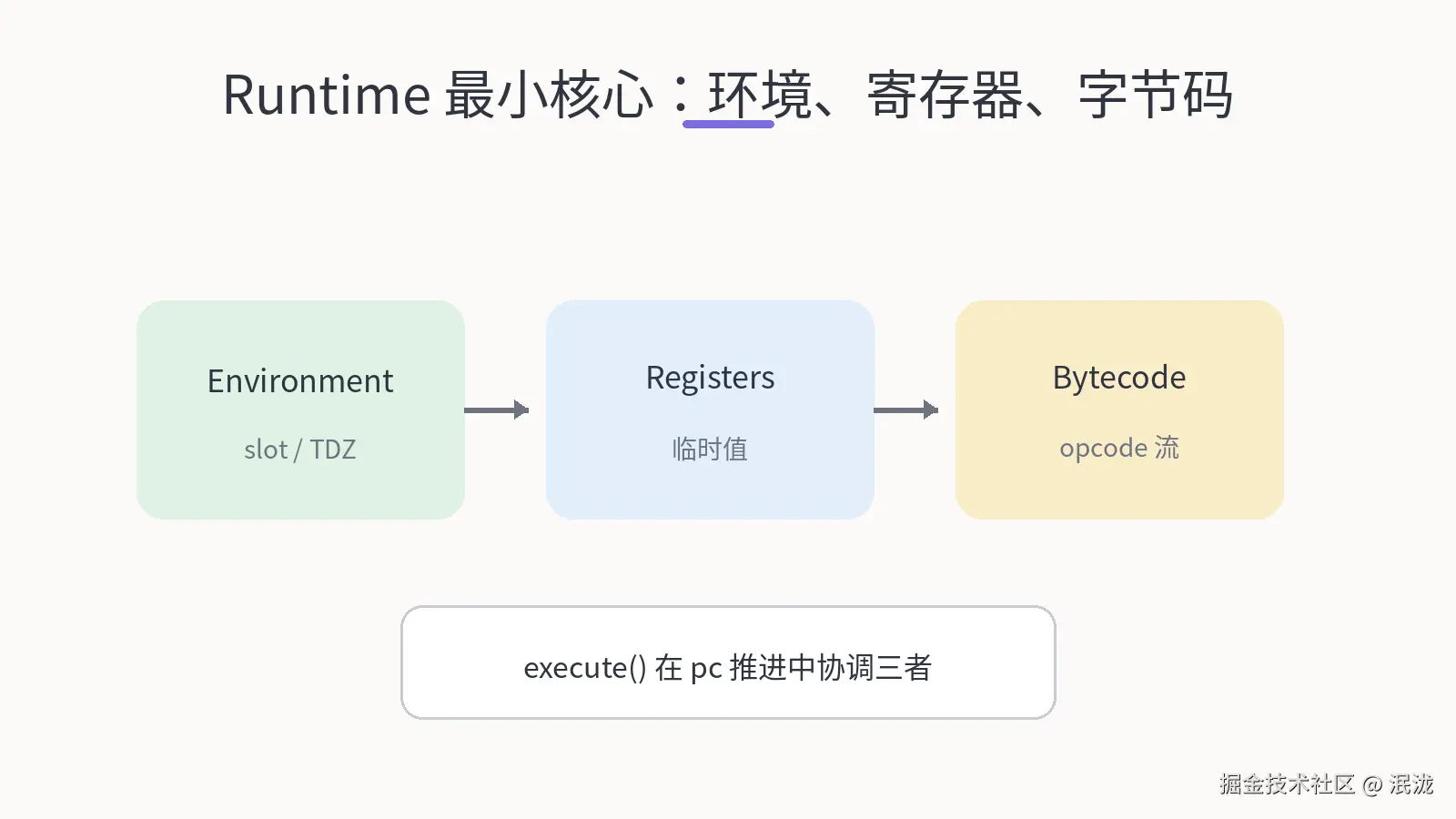

5. Runtime 最小实现

<span>function</span> <span>binary</span>(<span>op, left, right</span>) {
  <span>switch</span> (op) {
    <span>case</span> <span>BINARY_OPS</span>[<span>'+'</span>]: <span>return</span> left + right;
    <span>case</span> <span>BINARY_OPS</span>[<span>'-'</span>]: <span>return</span> left - right;
    <span>case</span> <span>BINARY_OPS</span>[<span>'*'</span>]: <span>return</span> left * right;
    <span>case</span> <span>BINARY_OPS</span>[<span>'/'</span>]: <span>return</span> left / right;
    <span>default</span>: <span>throw</span> <span>new</span> <span>Error</span>(<span>'bad op'</span>);
  }
}

<span>function</span> <span>createEnv</span>(<span>slotNames, parent = <span>null</span></span>) {
  <span>return</span> {
    <span>values</span>: <span>new</span> <span>Array</span>(slotNames.<span>length</span>),
    <span>states</span>: <span>new</span> <span>Array</span>(slotNames.<span>length</span>).<span>fill</span>(<span>false</span>),
    slotNames,
    parent,
  };
}

<span>function</span> <span>readSlot</span>(<span>env, slot</span>) {
  <span>if</span> (!env.<span>states</span>[slot]) <span>throw</span> <span>new</span> <span>ReferenceError</span>(<span>`<span>${env.slotNames[slot]}</span> not initialized`</span>);
  <span>return</span> env.<span>values</span>[slot];
}

<span>function</span> <span>writeSlot</span>(<span>env, slot, value, init</span>) {
  <span>if</span> (!init && !env.<span>states</span>[slot]) <span>throw</span> <span>new</span> <span>ReferenceError</span>(<span>`<span>${env.slotNames[slot]}</span> not initialized`</span>);
  env.<span>values</span>[slot] = value;
  env.<span>states</span>[slot] = <span>true</span>;
}

6. 执行函数

<span>function</span> <span>execute</span>(<span>metadata, functionId, parentEnv, args = []</span>) {
  <span>const</span> fn = metadata.<span>functions</span>[functionId];
  <span>const</span> env = <span>createEnv</span>(fn.<span>slotNames</span>, parentEnv);
  <span>const</span> regs = <span>new</span> <span>Array</span>(fn.<span>registerCount</span>);
  <span>const</span> code = metadata.<span>bytecode</span>;

  <span>for</span> (<span>let</span> i = <span>0</span>; i < fn.<span>params</span>.<span>length</span>; i++) {
    env.<span>values</span>[i] = args[i];
    env.<span>states</span>[i] = <span>true</span>;
  }

  <span>let</span> pc = fn.<span>entry</span>;

  <span>while</span> (pc < fn.<span>end</span>) {
    <span>const</span> op = code[pc++];

    <span>switch</span> (op) {
      <span>case</span> <span>OPCODES</span>.<span>LOAD_CONST</span>:
        regs[code[pc++]] = metadata.<span>constantPool</span>[code[pc++]];
        <span>break</span>;

      <span>case</span> <span>OPCODES</span>.<span>LOAD_SLOT</span>:
        regs[code[pc++]] = <span>readSlot</span>(env, code[pc++]);
        <span>break</span>;

      <span>case</span> <span>OPCODES</span>.<span>INIT_SLOT</span>:
        <span>writeSlot</span>(env, code[pc++], regs[code[pc++]], <span>true</span>);
        <span>break</span>;

      <span>case</span> <span>OPCODES</span>.<span>STORE_SLOT</span>:
        <span>writeSlot</span>(env, code[pc++], regs[code[pc++]], <span>false</span>);
        <span>break</span>;

      <span>case</span> <span>OPCODES</span>.<span>BINARY</span>: {
        <span>const</span> dst = code[pc++];
        <span>const</span> left = code[pc++];
        <span>const</span> right = code[pc++];
        <span>const</span> bop = code[pc++];
        regs[dst] = <span>binary</span>(bop, regs[left], regs[right]);
        <span>break</span>;
      }

      <span>case</span> <span>OPCODES</span>.<span>JUMP</span>:
        pc = code[pc];
        <span>break</span>;

      <span>case</span> <span>OPCODES</span>.<span>JUMP_IF_FALSE</span>: {
        <span>const</span> condition = regs[code[pc++]];
        <span>const</span> target = code[pc++];
        <span>if</span> (!condition) pc = target;
        <span>break</span>;
      }

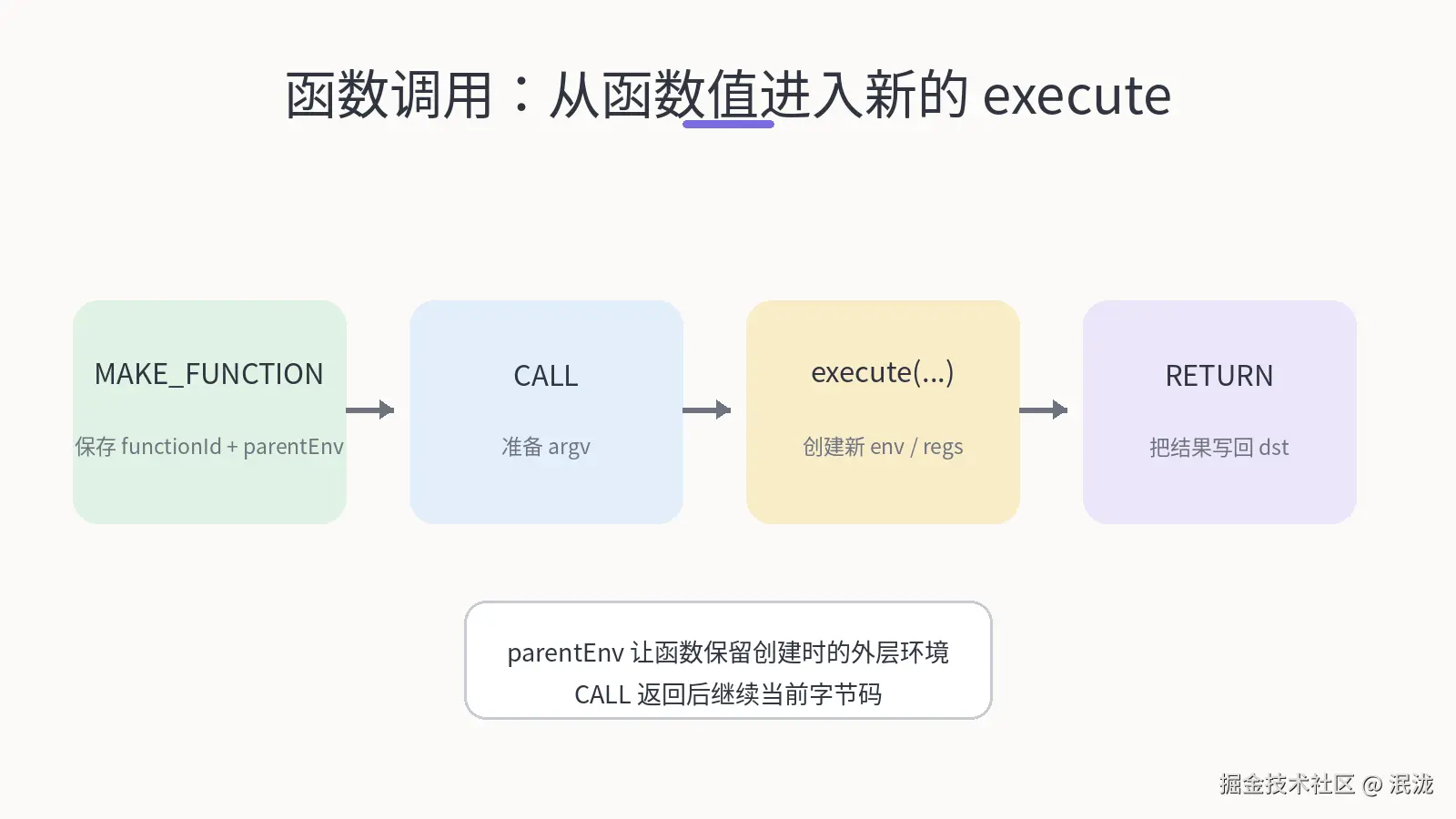

      <span>case</span> <span>OPCODES</span>.<span>MAKE_FUNCTION</span>:
        regs[code[pc++]] = { <span>functionId</span>: code[pc++], <span>parentEnv</span>: env };
        <span>break</span>;

      <span>case</span> <span>OPCODES</span>.<span>CALL</span>: {
        <span>const</span> dst = code[pc++];
        <span>const</span> fnValue = regs[code[pc++]];
        <span>const</span> argc = code[pc++];
        <span>const</span> argv = [];
        <span>for</span> (<span>let</span> i = <span>0</span>; i < argc; i++) argv.<span>push</span>(regs[code[pc++]]);
        regs[dst] = <span>execute</span>(metadata, fnValue.<span>functionId</span>, fnValue.<span>parentEnv</span>, argv);
        <span>break</span>;
      }

      <span>case</span> <span>OPCODES</span>.<span>RETURN</span>:
        <span>return</span> regs[code[pc++]];

      <span>default</span>:
        <span>throw</span> <span>new</span> <span>Error</span>(<span>`unknown opcode <span>${op}</span>`</span>);
    }
  }
}

7. 示例 Artifact

<span>const</span> metadata = {
  <span>constantPool</span>: [<span>1</span>, <span>2</span>],
  <span>functions</span>: [
    {
      <span>id</span>: <span>0</span>,
      <span>name</span>: <span>null</span>,
      <span>entry</span>: <span>0</span>,
      <span>end</span>: <span>17</span>,
      <span>registerCount</span>: <span>4</span>,
      <span>slotNames</span>: [<span>'add'</span>, <span>'x'</span>],
      <span>params</span>: [],
    },
    {
      <span>id</span>: <span>1</span>,
      <span>name</span>: <span>'add'</span>,
      <span>entry</span>: <span>17</span>,
      <span>end</span>: <span>26</span>,
      <span>registerCount</span>: <span>3</span>,
      <span>slotNames</span>: [<span>'a'</span>, <span>'b'</span>],
      <span>params</span>: [<span>'a'</span>, <span>'b'</span>],
    },
  ],
  <span>bytecode</span>: [
    <span>OPCODES</span>.<span>MAKE_FUNCTION</span>, <span>0</span>, <span>1</span>,
    <span>OPCODES</span>.<span>INIT_SLOT</span>, <span>0</span>, <span>0</span>,
    <span>OPCODES</span>.<span>LOAD_SLOT</span>, <span>1</span>, <span>0</span>,
    <span>OPCODES</span>.<span>LOAD_CONST</span>, <span>2</span>, <span>0</span>,
    <span>OPCODES</span>.<span>LOAD_CONST</span>, <span>3</span>, <span>1</span>,
    <span>OPCODES</span>.<span>CALL</span>, <span>2</span>, <span>1</span>, <span>2</span>, <span>2</span>, <span>3</span>,
    <span>OPCODES</span>.<span>INIT_SLOT</span>, <span>1</span>, <span>2</span>,
    <span>OPCODES</span>.<span>LOAD_SLOT</span>, <span>3</span>, <span>1</span>,
    <span>OPCODES</span>.<span>RETURN</span>, <span>3</span>,

    <span>OPCODES</span>.<span>LOAD_SLOT</span>, <span>0</span>, <span>0</span>,
    <span>OPCODES</span>.<span>LOAD_SLOT</span>, <span>1</span>, <span>1</span>,
    <span>OPCODES</span>.<span>BINARY</span>, <span>2</span>, <span>0</span>, <span>1</span>, <span>BINARY_OPS</span>[<span>'+'</span>],
    <span>OPCODES</span>.<span>RETURN</span>, <span>2</span>,
  ],
};

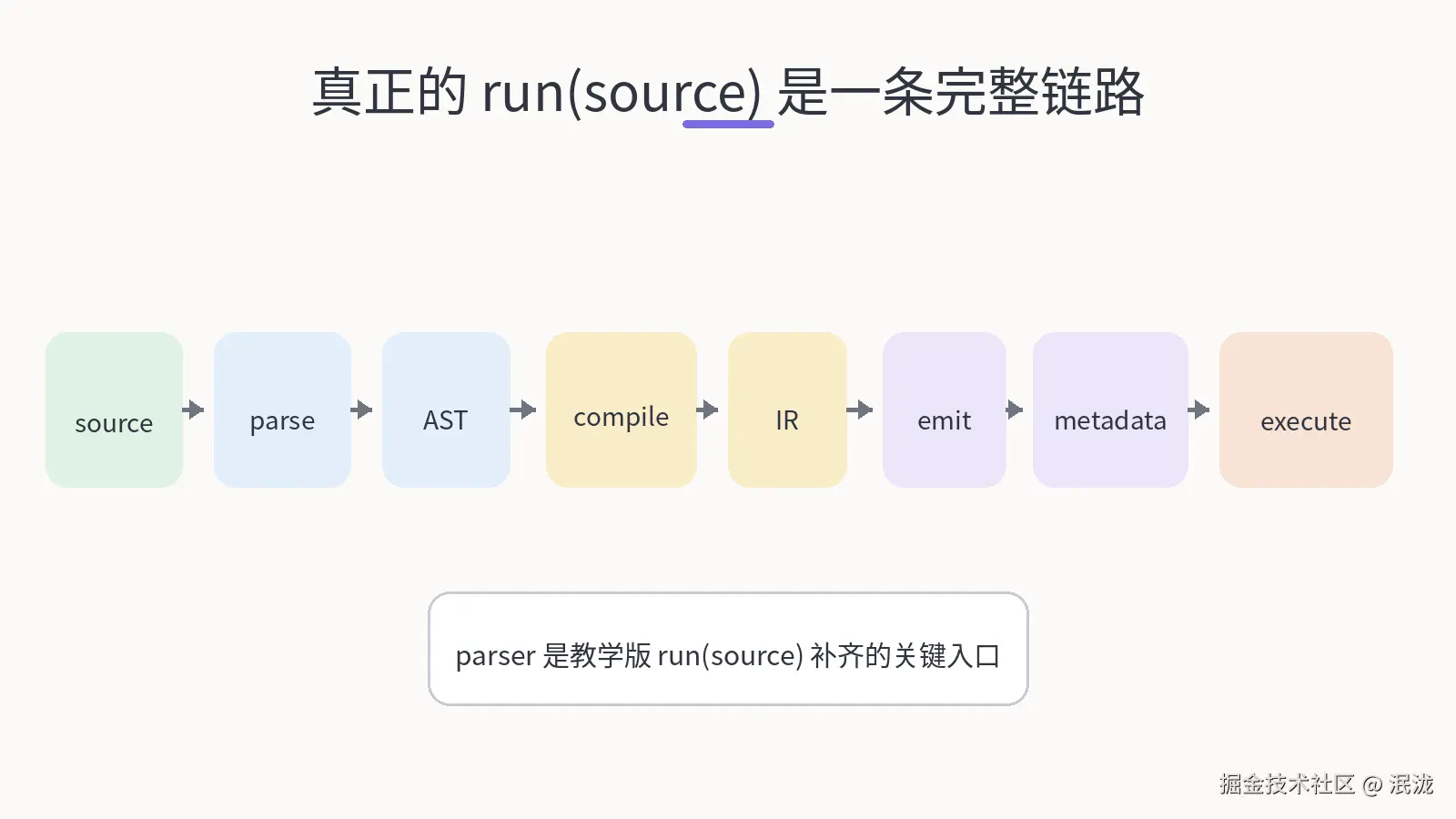

8. run(source) 的位置

这里还缺一个关键入口：parser。真正完整的 run(source) 需要先解析源码；教学版可以把 parse 简化为“输入已知示例时返回固定 AST”：

<span>function</span> <span>runKnownProgram</span>(<span></span>) {
  <span>return</span> <span>execute</span>(metadata, <span>0</span>, <span>null</span>, []);
}

<span>console</span>.<span>log</span>(<span>runKnownProgram</span>()); <span>// 3</span>

因此，如果要扩展成真正的 run(source)，就需要把 parser 接到现有编译与执行链路之前：

source -> parse -> AST -> compile -> IR -> emit -> metadata -> execute

9. 测试用例

教学版目标测试：

<span>run</span>(<span>'1 + 2'</span>) === <span>3</span>;
<span>run</span>(<span>'let a = 1; a;'</span>) === <span>1</span>;
<span>run</span>(<span>'let a = 1 + 2; a;'</span>) === <span>3</span>;
<span>run</span>(<span>'function add(a, b) { return a + b; } add(1, 2);'</span>) === <span>3</span>;
<span>run</span>(<span>'let x = 1; if (x) { x = 2; } x;'</span>) === <span>2</span>;

如果当前教学代码还没有完整 parser，这些测试可以先作为目标用例，随着 parser 能力补齐再逐步完成。

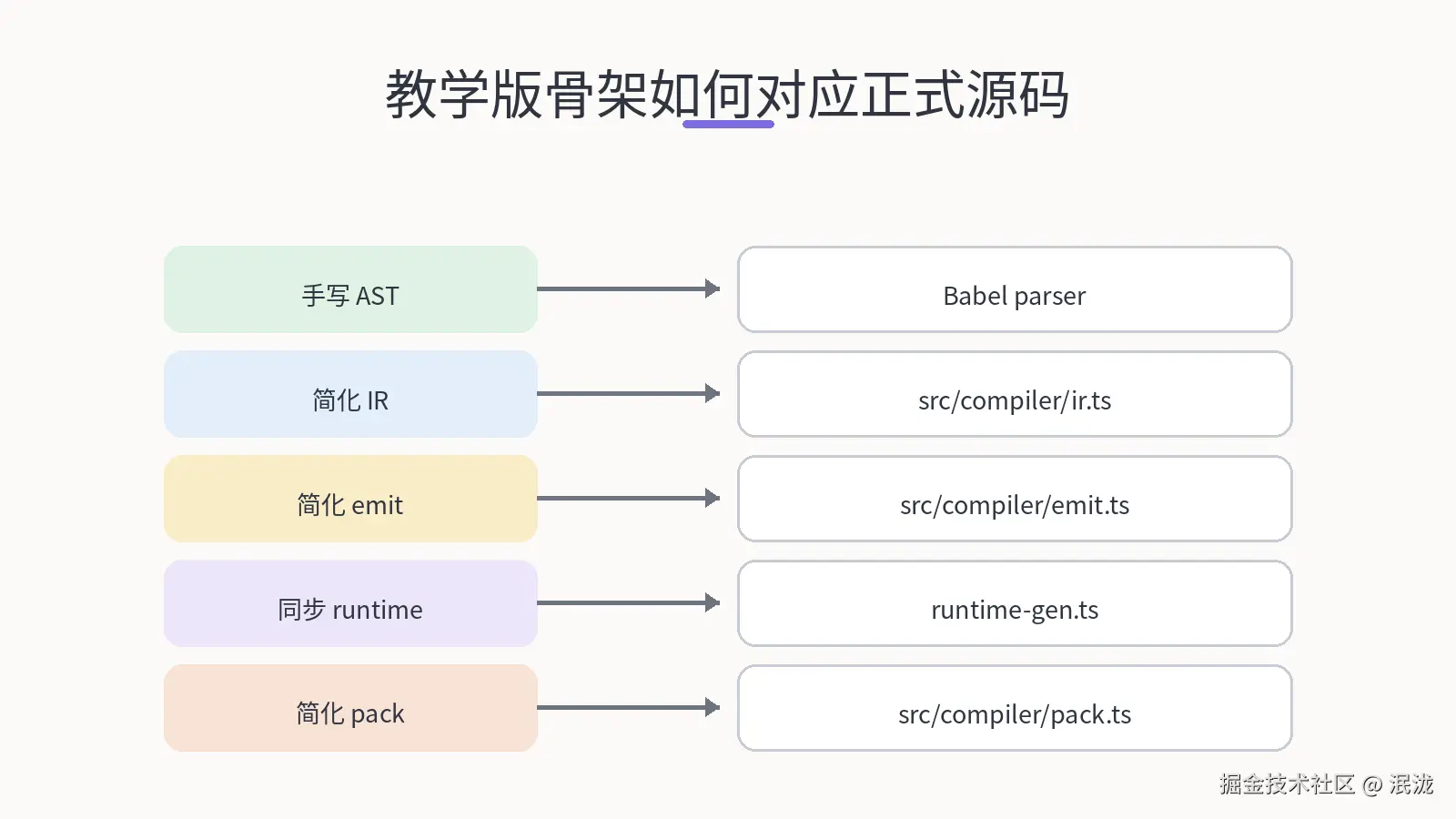

10. 源码设计复盘

教学版	正式源码
手写 / 简化 AST	Babel parser
简化 FunctionBuilder	完整 `FunctionBuilder` / `ScopeFrame`
简化 IR	`src/compiler/ir.ts`
简化 emit	`src/compiler/emit.ts`
单一同步 runtime	`runtime-gen.ts` 中 sync/async/generator runtime
简化 pack	`src/compiler/pack.ts`
无 bundler	`src/compiler/bundler.ts`

11. 安全与设计提醒

JSVM 并不是安全沙箱。即使源码被编成 bytecode，runtime 仍然在宿主 JS 环境中执行。如果暴露 globalObject、require、import 或原型对象，仍然可能产生任意代码执行、原型污染或沙箱逃逸风险。

因此，教学版不要声称具备安全隔离能力。正式工程若要用于不可信代码，需要把沙箱边界作为独立问题设计。

12. Mermaid 总复盘

flowchart TD
    A[&#34;JavaScript Source&#34;] --> B[&#34;Parser&#34;]
    B --> C[&#34;AST&#34;]
    C --> D[&#34;Lowering&#34;]
    D --> E[&#34;IR&#34;]
    E --> F[&#34;Emit&#34;]
    F --> G[&#34;Bytecode + ConstantPool&#34;]
    G --> H[&#34;Runtime Context&#34;]
    H --> I[&#34;Execute&#34;]
    I --> J[&#34;Result&#34;]

13. 本文小结

至此，我们已经从 0 到 1 串起一台最小 JSVM 的完整链路：

最小栈式 VM；
数字 bytecode 与 constant pool；
寄存器式 VM；
slot、environment 与 TDZ；
AST 到 IR；
IR 到 bytecode；
控制流；
函数调用；
闭包；
对象和属性访问；
打包输出；
完整最小复盘。

后续可以继续扩展：

完整 parser；
更完整的作用域链；
对象 / class 完整语义；
async / generator；
module bundling；
调试器；
混淆和保护策略。
